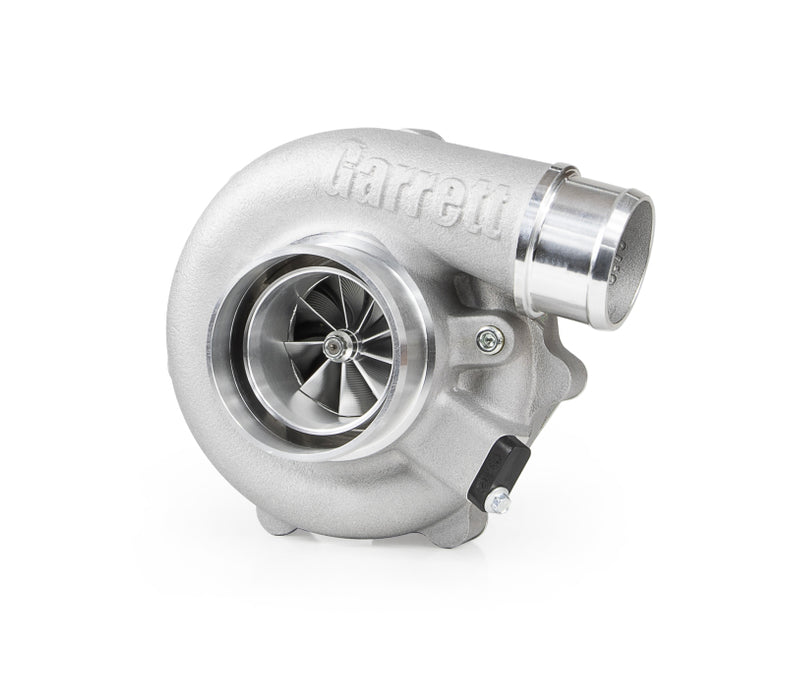

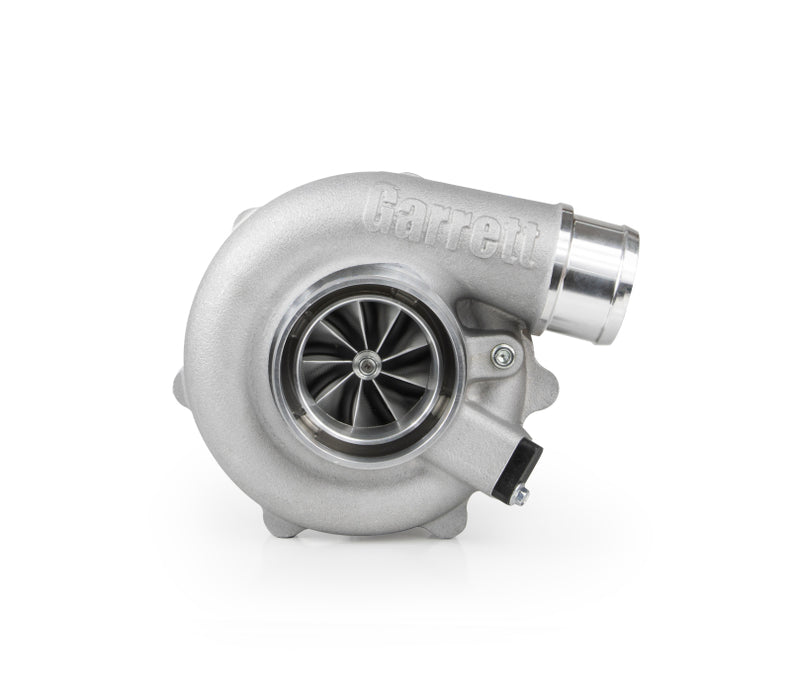

Garrett G25-585 G-Series II Supercore 48mm

Garrett Model 934075-5001S

New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• Calibration required to take advantage of increased flow for a horsepower upgrade.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations.
• Mar-M alloy turbine wheel rated up to 1050° C.
• Stainless steel turbine housings are rated up to 1050° C.
• Oil restrictor and water fittings included.

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
