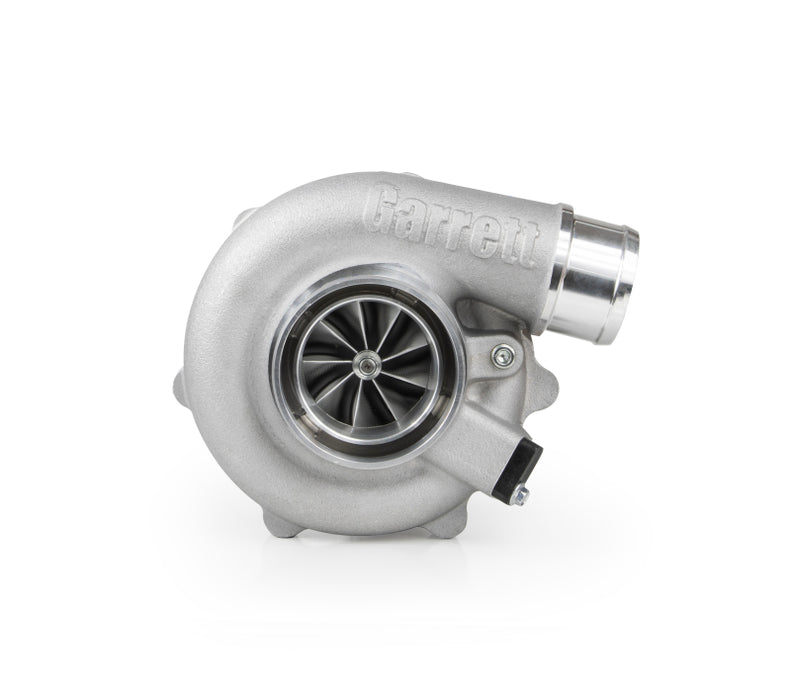

Garrett G25-700 Reverse Rotation G-Series II Supercore

Garrett Model 934114-5002S

Garrett G25-700 Reverse Rotation G-Series II Supercore

• G-Series II G25-700 reverse rotation supercore
• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• Calibration required to take advantage of increased flow for a horsepower upgrade.
• Increased efficiency at high flow rates.
• 54mm Compressor Inducer / 67mm exducer
• Mar-M alloy turbine wheel rated up to 1050C degree.
• Stainless steel turbine housings are rated up to 1050C degree.
• Oil restrictor and water fittings included.
