Pro Form Fab 17-20 Super Duty F250/350 Adjustable 4 Link Upgrade
by Pro Form Fab
Original price
$950.00
-
Original price
$1,150.00
Original price
$950.00
$950.00
-
$1,150.00
Current price
$950.00
Product Description:

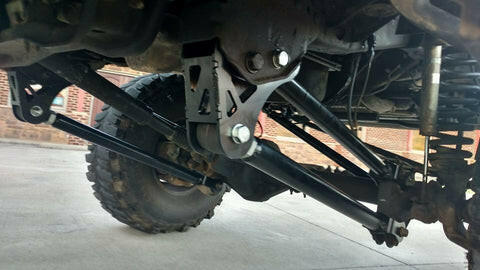

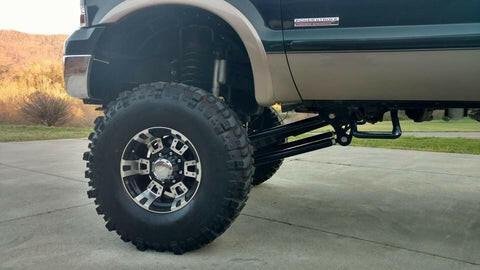

We are proud to bring you our Heavy Duty Tubular 4 Link Upgrade for the Ford Super Duty. These work on stock trucks all the way up to 12" of lift. They are completely bolt on utilizing the existing radius arm frame brackets combined with our brackets included in this kit. A 4 link kit improves ride quality and drive-ability compared to the OEM radius arm setup as you now have 2 axis pivot points at the frame so the axle will be free to travel straight up and down as opposed to "twisting" with the single axis radius arm setup. We offer this kit in fixed length and adjustable versions.
Our adjustable kits are offered in two sizes:
Stock to 6" lift
6" to 12" lift
*Please note that all kits are build to order, so please allow up to 30 days for your order to ship, as they are in higher demand than anticipated. We ask that you please be patient, and please reach out to us if you need to know the status of your order.
They have 2" of adjust-ability so you can fine tune exactly where you want the axle to sit if you have an aftermarket bumper and want it further forward etc. At the frame side we use high quality rebuildable Heavy Duty 1.25" Rod Ends.
Ready To Install Adjustable 4-Link Kit Includes:
2 - Lower Arms (Clevis one end, screw-in style collar other end)
2 - Upper Arms (Clevis one end, screw-in style collar other end)
8 - PT MEG Bushing
4 - DOM Drive In Sleeves
Product Finish:
These are offered RAW, finished in a heavy black powder coating, or a custom color of your choice. This gives them elegance as well as extreme durability to the elements. We apply 10 mils of powder and bake at 400 degrees for no less than 20 minutes. The results are a finish that is capable of withstanding anything you can throw at it.
*Custom colors are available as shown in the photos, the upcharge for color allows you to choose from any one stocking color or a color Prismatic Powders offers. (Translucent colors excluded do to lack of UV protection)
Hardware:
This kit comes ready to bolt on with high quality zinc coated Grade 8 hardware which includes poly lock nuts to ensure they stay tight for all your.
This kit comes ready to bolt on with high quality zinc coated Grade 8 hardware which includes poly lock nuts to ensure they stay tight for all your.
Instructions:
All of our products come complete with detailed step by step install instructions to ensure installation is a breeze. Average install time for this kit is 45-60 minutes.
All of our products come complete with detailed step by step install instructions to ensure installation is a breeze. Average install time for this kit is 45-60 minutes.
