LB7 Duramax Injectors - OEM vs Aftermarket, Failure Signs & Where to Buy

The LB7 Duramax (2001-2004) was the first 6.6L diesel GM put in a production pickup, and it introduced one problem that still follows the engine decades later: premature injector failure. The injectors sit under the valve covers, so return leakage from a worn injector drains into the crankcase and dilutes the engine oil, and the original Bosch VCO nozzle wears faster than the designs that replaced it. Full sets failing between 100,000 and 150,000 miles were common enough that GM extended the injector warranty twice.

This guide covers why LB7 injectors fail, the symptoms to watch for, how to run a leak-off test before you order parts, and how to choose between a stock replacement and a performance injector.

Applies to: 2001-2004 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD with the 6.6L Duramax LB7.

Key Takeaways

• Nozzle wear and high leak-off are the primary LB7 failure modes, not electrical or seal failure.
• The diagnostic standard is a leak-off test: collect return fuel from all 8 injectors at idle and compare cylinders against each other.
• Replace all 8 at once. Valve cover removal is required to reach every injector, so labor is much the same for one as for eight.
• Replace the injection lines at the same time. LB7 lines corrode with age and are a leading source of contamination during an injector job.
• For a stock truck, choose a stock-flowing replacement. The S&S Diesel Motorsport LB7 SAC00 Injector Set and the Industrial Injection LB7 Stock Bosch Reman Injectors & Line Package both deliver factory fuel quantity with no tuning changes.
• Performance injectors need supporting fuel supply and tuning first. The DDP LB7 Brand New Injector Set, 60% Over, for example, requires a modified or dual CP3 and an upgraded turbocharger.
• GM's extended injector warranty (7 years / 200,000 miles) has long since expired on every LB7. Check service records to see whether the injectors were already replaced under it.

Why LB7 Injectors Fail Earlier Than Other Duramax Engines

The LB7 runs common-rail injection at approximately 23,000 PSI. Eight Bosch solenoid-actuated injectors operate at pressures and duty cycles that wear the original nozzles faster than the LLY, LBZ, and LMM injectors that followed.

Two design factors are responsible:

• Injector location - the injectors sit under the valve covers, in contact with engine oil. Return leakage from a worn injector drains straight into the crankcase and dilutes the oil, which is why a rising oil level and a diesel smell in the oil are classic LB7 warning signs.
• The original VCO nozzle - the factory valve-covered-orifice nozzle wears faster than the designs that replaced it and is now obsolete. GM acknowledged the failure rate with two warranty extensions.

Every replacement injector sold today uses an updated nozzle. S&S, for instance, developed a stock-flowing SAC nozzle with Bosch specifically to replace the obsolete VCO design.

LB7 Injector Failure Symptoms

LB7 injector failure follows a predictable pattern. Most trucks show two or three of these before a leak-off test confirms which cylinders are worn. The same symptom set turns up on other platforms too, which we cover in 5 Signs Your Diesel Injectors Are Failing.

White or Gray Smoke at Startup

Worn nozzles produce an irregular spray pattern that does not fully atomize fuel. The unburned fuel exits as white or gray smoke, most visible on a cold start. This is the most common early LB7 injector symptom, and the one most often mistaken for a glow plug or temperature sensor fault.

What to look for:

• White or light gray smoke, heaviest on the first cold start of the day

• Smoke clearing after several minutes once the engine reaches operating temperature

• Glow plugs and the coolant temperature sensor testing normal

• Smoke returning on every cold start and worsening gradually as the nozzles wear

Rough Idle or Cylinder Misfire

A worn nozzle delivers an inconsistent fuel quantity per injection event, producing a rough, loping idle. On the LB7 the reliable indicator is injector balance rates: a factory-compatible scan tool (Tech 2 or MDI) shows how much each cylinder is contributing, which identifies an underperforming injector well before it fails outright.

What to look for:

• A loping or uneven idle that does not smooth out once the engine is fully warm

• Balance rates on one or more cylinders sitting outside the range of the others

• Idle that steadies under load and roughens again at light throttle

• Misfire codes in some cases, though a worn nozzle often shows in balance rates without setting a code

Hard Start or Extended Crank Time

High leak-off means return fuel is bleeding back to the tank instead of being injected, which drops rail pressure between ignition cycles. After an overnight sit the rails can bleed down far enough that cranking takes extra time to rebuild pressure. This is a leak-off symptom rather than a lift pump fault.

What to look for:

• Extended cranking before the engine catches, worst after a long sit

• Rail pressure slow to build on startup, confirmed on scan tool live data

• The symptom easing once the rails are pressurized and the engine is running

• A no-start in severe cases after the truck has sat overnight

Power Loss and Fuel Economy Drop

Worn nozzles deliver less fuel per injection event at the same duty cycle. Power falls off under load, throttle response softens, and fuel economy drops. These symptoms develop gradually and are easy to misattribute, which is why a baseline leak-off test at around 100,000 miles is worth doing while the truck still runs well.

What to look for:

• Reduced throttle response and slower turbo spool under a tow load

• Power falling off most noticeably at higher throttle openings

• Fuel economy down from the truck's established baseline

• Symptoms worsening progressively rather than coming and going

How to Diagnose LB7 Injectors: The Leak-Off Test

The leak-off test is the standard diagnostic for LB7 injector wear. It measures how much fuel each injector returns to the tank during a short idle period. An injector with a worn nozzle can no longer hold pressure between injection events, so it returns more fuel than a healthy one.

Leak-off test procedure:

• Disconnect the injector return line from the fuel rail return fitting

• Attach clear tubing to each injector's return port

• Route the tubes into separate labeled containers - graduated cylinders or glass jars

• Start the engine and idle it at operating temperature for the interval given in the service manual

• Measure and record the fuel collected from each of the 8 cylinders

Interpreting the results:

• The test is comparative. Healthy injectors return roughly equal volumes, so an outlier matters more than any single number.

• An injector returning noticeably more than its neighbors has a worn nozzle and is failing.

• An injector returning almost nothing may have a stuck or seized nozzle, which is also a failure.

• Check the factory service manual for the return volume and test interval specified for your truck before condemning an injector on volume alone.

Record all 8 readings before ordering parts. On a truck past 130,000 miles, even one or two outliers against six healthy cylinders still calls for a full set, because the remaining injectors share the same wear history.

OEM vs Aftermarket LB7 Injectors

LB7 replacement injectors fall into three groups: stock-flowing replacements, mild performance sets that are safe on a stock truck, and high-output injectors that require supporting modifications.

Stock-Flowing Replacements

These deliver factory fuel quantity, need no tuning changes, and are the right choice for a daily driver or tow truck. Remanufactured units use a core exchange model: the old injectors are returned, then cleaned, inspected, and re-nozzled to current specifications.

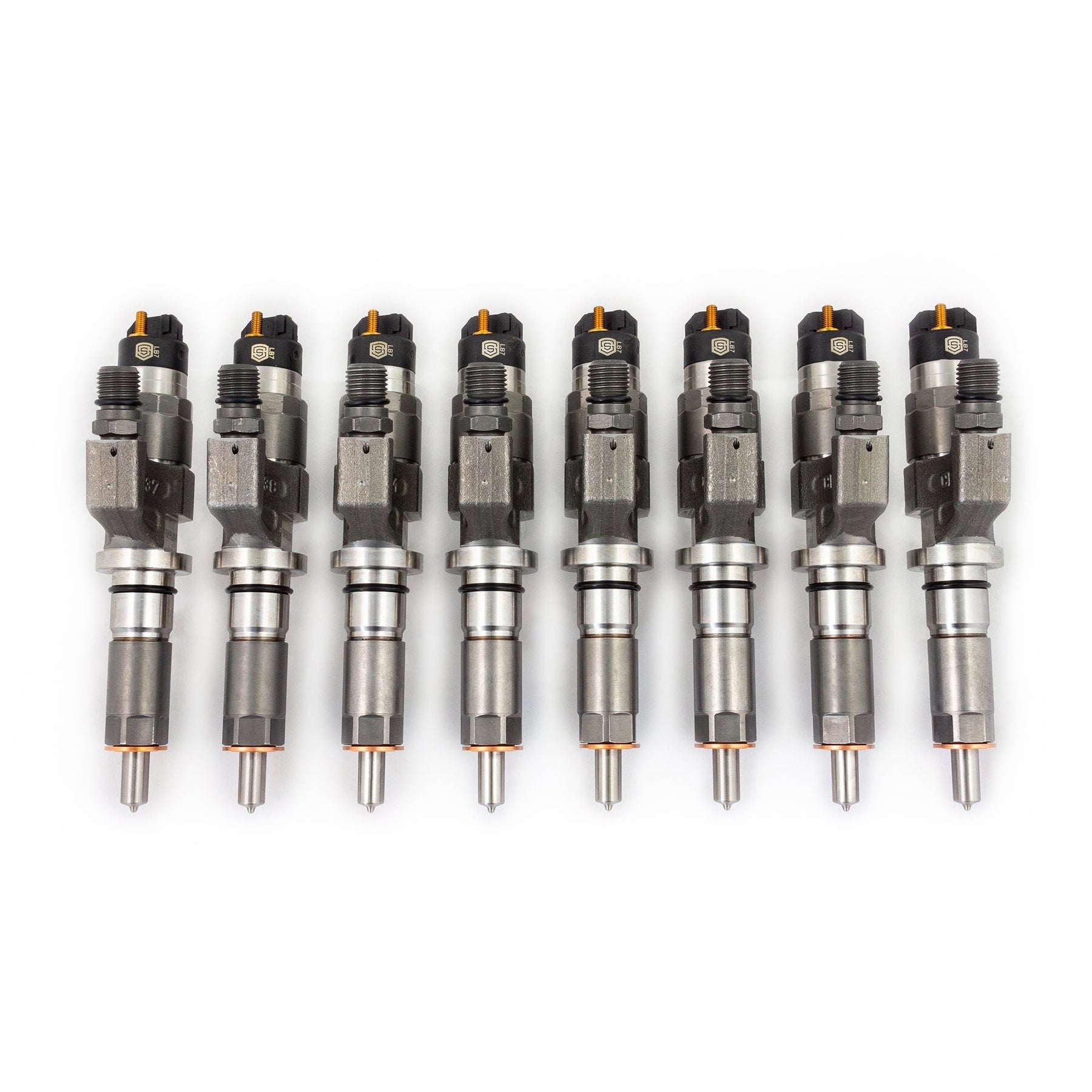

• The S&S Diesel Motorsport LB7 SAC00 Injector Set is available remanufactured or brand new. S&S developed this stock-flowing SAC nozzle with Bosch to replace the obsolete factory VCO nozzle, so it delivers stock fuel delivery with no calibration required, and it is CARB compliant under EO number D-756-2.

• The Industrial Injection LB7 Stock Bosch Reman Injectors & Line Package supplies Bosch remanufactured injectors together with the complete injection line set, so the lines do not have to be sourced separately.

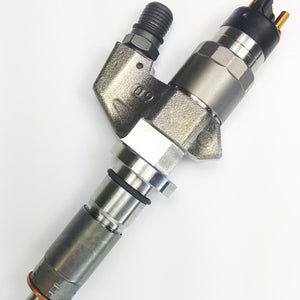

• The DDP LB7 Stock Reman Injector has every internal component replaced with new OE parts and is built to the latest revisions. Sold individually for a confirmed single-cylinder repair.

• The DDP LB7 Stock Brand New Injector is a new stock-power unit with no core charge, for cases where the remaining seven injectors pass a fresh leak-off test.

Mild Performance, Stock-Safe

A modest step above stock output that does not require a built fuel system, though a tuned calibration and a healthy lift pump are still advisable.

• The S&S Diesel Motorsport LB7 TorqueMaster Injector Set is S&S model LB7-10VCO, flowing 10 percent over stock, and is available remanufactured or new.

• The DDP LB7 Economy Series Injector Set is a brand-new set giving a very mild 10 to 20 RWHP increase, with full injector balancing to tighter tolerances than OEM. DDP rates it safe on stock trucks, with little to no smoke and good fuel economy.

High-Output Performance

These require supporting modifications before installation - at minimum an upgraded fuel supply, and at higher output levels a modified or dual CP3 pump, upgraded turbocharger, and custom tuning. Installing them without that supporting work risks a lean condition under load.

• The S&S Diesel Motorsport Duramax LB7 Injector Set is offered in 30 percent, 45 percent (SAC45), and 65 percent over stock, in remanufactured or new.

• The DDP LB7 Brand New Injector Set, 60% Over is rated by DDP for 750 to 800 RWHP. A modified or dual CP3 and upgraded turbocharger are mandatory along with custom tuning, and DDP does not recommend this set for towing.

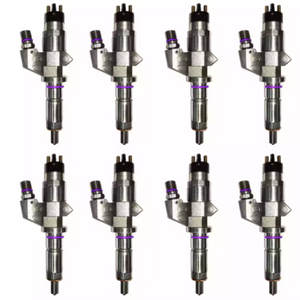

• The Exergy LB7 Reman 500% Over Injector Set is competition-level output. Factory nozzles are replaced with a SAC-type nozzle, enlarged by micro-EDM and abrasive flow honing, and matched to hydraulically flow within 1 percent across the set.

• Industrial Injection Extrude Honed LB7 Nozzles are nozzle-only upgrades for injectors being rebuilt in-house, in 26, 29, 31, 33, 39, 44, and 50 LPM flow rates.

Injection Lines: Replace Them With the Injectors

LB7 injection lines carry fuel at roughly 23,000 PSI from the rails to each injector, and they corrode with age. Corroded lines break and are a leading cause of fuel system contamination during an injector job, which is why both DDP and Fleece recommend replacing them alongside the injectors. Lines, pumps, and the rest of the supply side are in the LB7 Duramax fuel system collection.

• DDP advises replacing the lines whenever they have not been changed in the last 40,000 to 50,000 miles.

• The Fleece Performance LB7 Injection Lines are sold as a complete set of 8, brand new with no core charge.

• Fleece also sells lines in cylinder pairs for a targeted repair: 1 and 8, 2 and 7, 3 and 6, and 4 and 5.

Why Replace All 8 LB7 Injectors at Once

Replacing one or two LB7 injectors saves money in the short term and usually costs more in the medium term. The valve cover has to come off to reach any injector on that bank, so the labor to access one is much the same as for four. When a leak-off test flags a single injector at 130,000 miles, the other seven carry the same mileage and the same wear.

Replace the full set when:

• Any injector fails the leak-off test and the truck has more than 100,000 miles

• The truck has never had its injectors replaced and is showing symptoms on any cylinder

• The truck is already apart for other top-end work such as a head gasket, valve cover gasket, or water pump

Not a job you want to take on in your own driveway? We do LB7 injector sets and injection lines in house at our Knoxville shop. Call 865-640-2097 and we will walk you through what your leak-off numbers actually mean.

Where to Buy LB7 Duramax Injectors

Powerhouse Diesel stocks LB7 injectors from Industrial Injection, DDP, S&S Diesel Motorsport, and Exergy, plus injection lines from Fleece Performance. Stock-flowing sets, single injectors, performance options, and injection lines are all in the LB7 Duramax fuel injectors collection.

Frequently Asked Questions

1. How many miles do LB7 Duramax injectors last?

Most original LB7 injectors failed between 100,000 and 150,000 miles. Trucks with clean fuel, consistent oil changes, and no performance tune often ran longer before leak-off rates showed wear.

2. Can I replace just one LB7 injector?

It is rarely the right move past 100,000 miles. The valve cover has to come off regardless of how many injectors you change, and the remaining injectors share the same wear history. Replace all 8 unless the truck is low-mileage with a single confirmed failure.

3. What is a leak-off test?

A leak-off test measures how much fuel each injector returns to the tank at idle. You collect the return from all 8 injectors and compare them - an injector returning noticeably more than its neighbors has a worn nozzle.

4. Which brand is best for LB7 injector replacement?

For a stock truck, the S&S Diesel Motorsport LB7 SAC00 Injector Set and Industrial Injection's Bosch remanufactured sets are both strong choices: stock fuel delivery, no tuning changes, and an updated nozzle. DDP is the option for single-injector repairs and for mild performance sets.

5. Do LB7 injectors need to be programmed?

No. Unlike later Duramax generations that use injector trim codes, LB7 injectors are interchangeable within a matched set and need no coding after installation.

6. How much does LB7 injector replacement cost?

Cost depends on whether you replace a full set or a single injector, the brand and output level you choose, and whether injection lines are included in the package. Shop labor to pull both valve covers and swap all 8 injectors is usually the larger share of the bill. Current pricing for each option is listed in the LB7 Duramax fuel injectors collection.

Conclusion

LB7 injector failure is predictable and diagnosable well before it strands you. A leak-off test gives a clear picture of nozzle wear across all 8 cylinders, and balance rates on a scan tool will flag a weak injector earlier still. When replacement is due, do the full set, replace the corroded injection lines at the same time, and match the injector to how the truck is actually used.

The LB7 Duramax fuel injectors collection at Powerhouse Diesel carries stock-flowing sets, single injectors, and performance options from Industrial Injection, DDP, S&S Diesel Motorsport, and Exergy.
