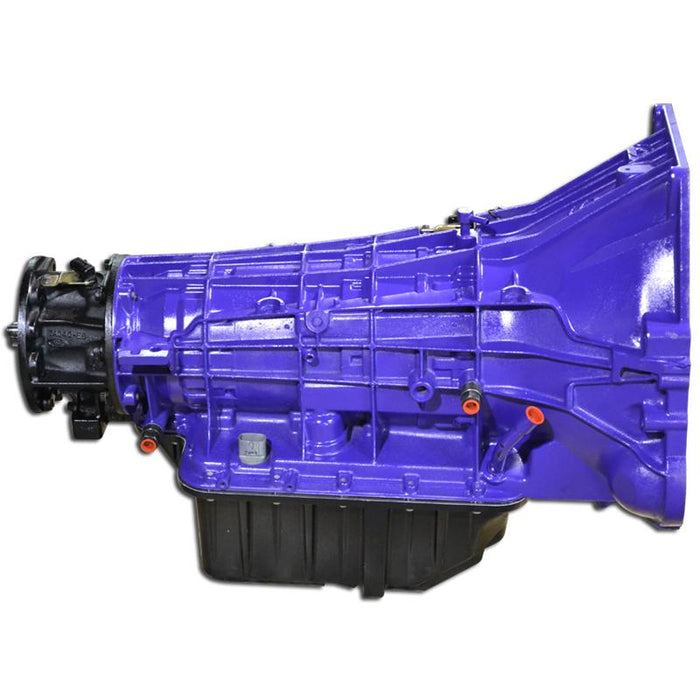

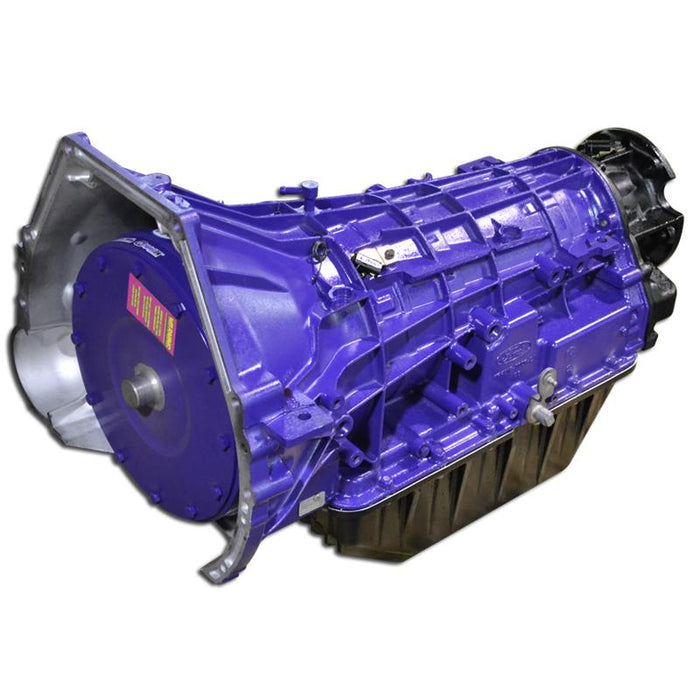

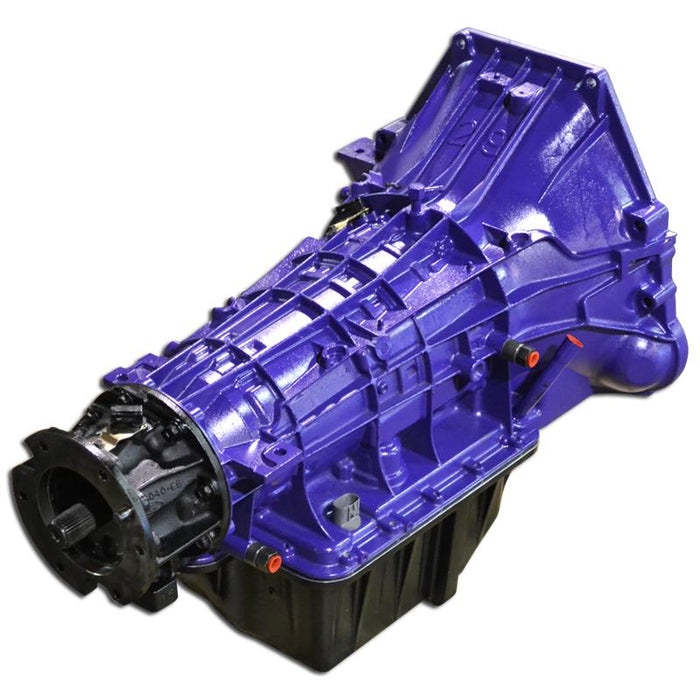

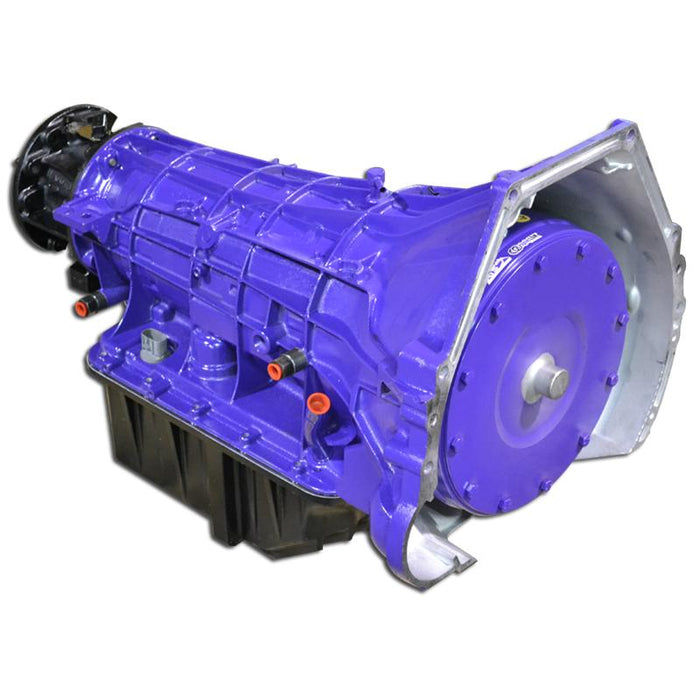

ATS Diesel 1999-2003 Ford 4wd 4R100 Stage 2 Transmission Package

Name: ATS Diesel 1999-2003 Ford 4wd 4R100 Stage 2 Transmission Package
Brand: ATS Diesel
SKU: ATS309-924-3224
Price: 5669.99 USD
Availability: InStock

by ATS Diesel

Part#:

309-924-3224

$5,669.99 - $5,669.99

$5,669.99

$5,669.99 - $5,669.99

$5,669.99

Description

The stock 4R100 behind a 7.3 Powerstroke slips and burns up once you add tuning, bigger injectors or a heavy trailer. The ATS Stage 2 package rebuilds the weak points with a billet input shaft, a stronger converter and more clutch, built for 1999 to 2003 4WD trucks.

Fits: 1999 to 2003 Ford F250 and F350 Super Duty and 2000 to 2003 Excursion, 4WD with the 7.3 Powerstroke and 4R100 transmission, without PTO.
Part number: 309-924-3224.
Includes: ATS built 4R100 transmission, ATS Five Star torque converter, billet 300M input shaft, modified pump, upgraded clutch packs, redesigned accumulator pistons and ATS deep transmission pan.
Billet input shaft: Above about 400 hp or under heavy towing the input shaft takes the hit. The 300M billet shaft is made to hold that torque.
Five Star converter: Billet cover, five lock up clutches, billet stator and furnace brazed impeller, so it locks up firm and stays together.
More line pressure and clutch: Modified pump and valve body plus more clutches per pack than stock for firm, consistent shifts.

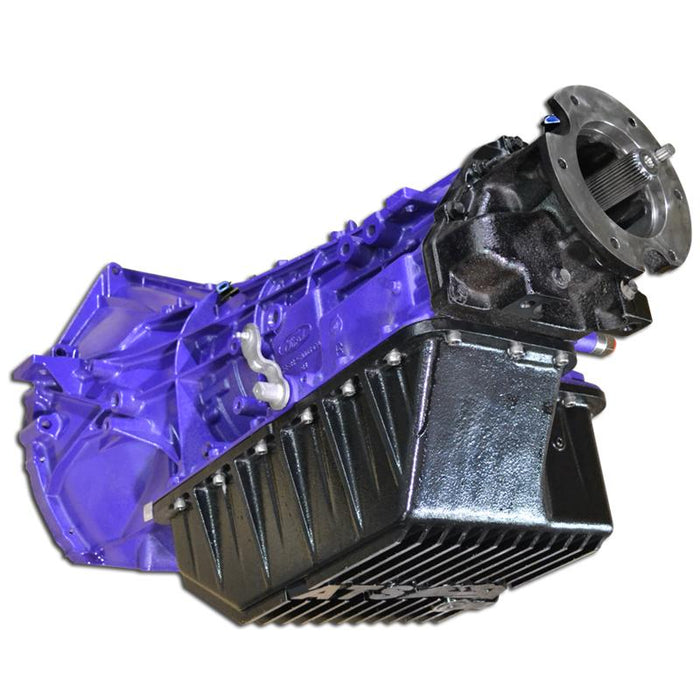

Runs cooler: Finned deep pan adds 5 quarts of fluid, has a magnetic drain plug and is tapped for a temperature probe.
Warranty: 5 years or 500,000 miles from ATS, regardless of power level or use.
Core: $1,600 refundable core charge. Send back your old transmission to get it refunded.
Shipping: Ships by freight and is built to order.
Install: Full transmission swap. Plan on shop time and a fluid fill. Built for trucks with aggressive tuning and a modified turbo or injectors.
Questions on fitment? Call our shop at 865 640 2097 and talk to a tech who works on these trucks every day.

Warranty

ATS LIMITED PRODUCT WARRANTY

ATS Transmission packages carry a standard THREE YEAR Warranty. There are several exceptions, so refer to the Warranty’s specific terms and conditions . All labor, shipping, or any other charges associated with the product and the product’s failure are not covered under Warranty. Labor and/or shipping charges will not be refunded under any circumstance. After the one-year anniversary date of the original purchase, there is a limited parts replacement Warranty only. Transmissions that are purchased separately outside of a transmission package / stage and are installed without an ATS torque converter carry a 1 year parts only warranty and there is no labor or shipping allowance for transmission only purchases.

In the event of a product failure, the consumer must return the defective product to ATS for inspection before a replacement is sent to the consumer. After ATS inspects the product and completes the failure analysis, the inspection officer at ATS will provide written documentation stating the condition of the product and determine, to the best of his or her ability, what caused the malfunction or complaint. Based on the findings of the inspection report, ATS will determine whether there is a valid Warranty claim. Should a consumer require immediate service, and chooses not to wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer can purchase a replacement product from ATS. The consumer must pay the full current MSRP, the applicable core charge, and shipping to and from ATS’ shop. When the defective product arrives, ATS will refund the core charge and inspect the product. During inspection, ATS will assess the product for warrantable damage. If the original product has indeed failed under the terms of the original Warranty, ATS will refund the full purchase price for the replacement product only. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will deduct the total cost of required parts from the replacement product’s purchase price, and the consumer will be refunded the difference (if any) between the purchase price paid for the replacement product and the cost of parts.

If the consumer can wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer pays shipping to and from ATS’ shop. When the defective product arrives in Colorado, ATS will inspect the product. ATS will then assess the product for warrantable damage. If the product has failed under the terms of the original Warranty contract, ATS will repair or replace the product – at ATS’s discretion. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will bill the consumer for the total cost of parts required for repair of the product, and shipping to and from Colorado, prior to the repaired/replaced product being sent to the consumer.

ATS Manual Transmissions Warranty

This section incorporates Section 2, entitled “In the Event of a Failure.” ATS manual transmissions carry a 1-year/12,000 mile Warranty. ATS will not pay for any fluids replaced in the event of a transmission failure. There is no labor or freight warranty coverage on standard transmissions. Manual transmission shafts and gears are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft or gear.
