TP38r 63/73 Turbo

Recommended injectors: 180cc/30%

Minimum injectors: 160cc/stock

Maximum injectors: 205cc-30%

Features & Details:

4" ported housing with drilled hole anti-surge for high flow
63mm 7x7 sxe style compressor wheel with extended tip technology
73mm SXE style turbine wheel
Big Head Waste-gate Actuator for elevated boost control
High Flow deleted EBPV outlet flange
Dual Ball Bearing turbo (rebuildable in factory)
100% drop in turbo
Comes with all gaskets and o-rings to install

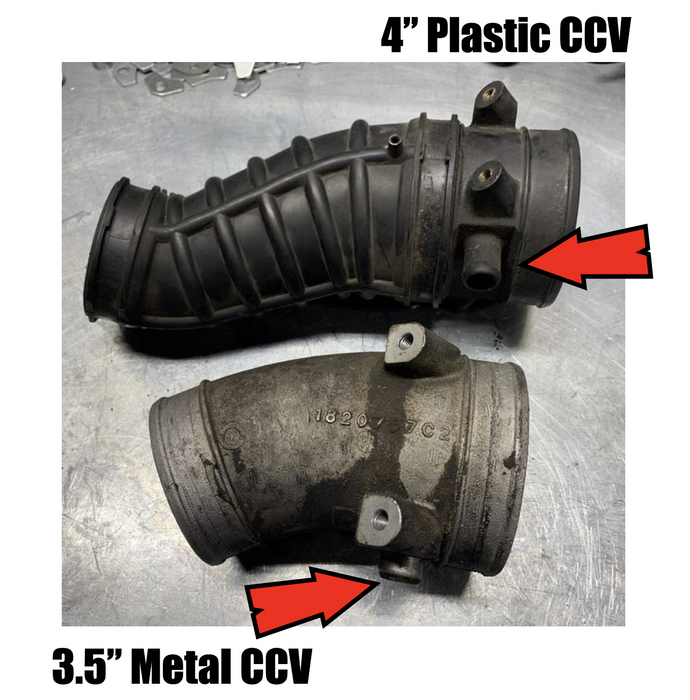

Comes with new 4" intake boot

Description:

Because of the popularity of the TP38r turbo for the OBS trucks, We have made a smaller version of the turbo for those running average size injectors. Also known as the OBS Tiger turbo. The 63mm compressor wheel is drastically different, It is a larger, 7x7 wheel and is modeled after the 366sxe compressor wheel. It Has the same profile, shape, and blade style, except it is reverse rotation. This wheel is not only bigger, but stronger. It has thicker blades, thicker hub, and thicker backing, this makes it much less prone to fatigue and wheel burst. The turbine wheel is also much larger, 74mm vs the old 70mm and increased shaft thickness from a 6.4mm to a 7.5mm. The turbine wheel is much larger, 74mm vs the old 70mm and increased shaft thickness from a 6.4mm to a 7.5mm.

**EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended. It will be up to the customer to verify fitment and functionality.**
