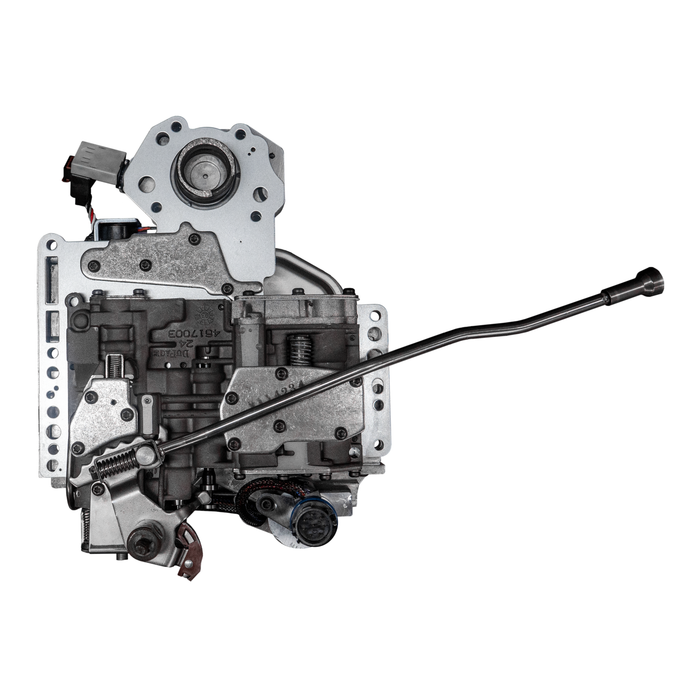

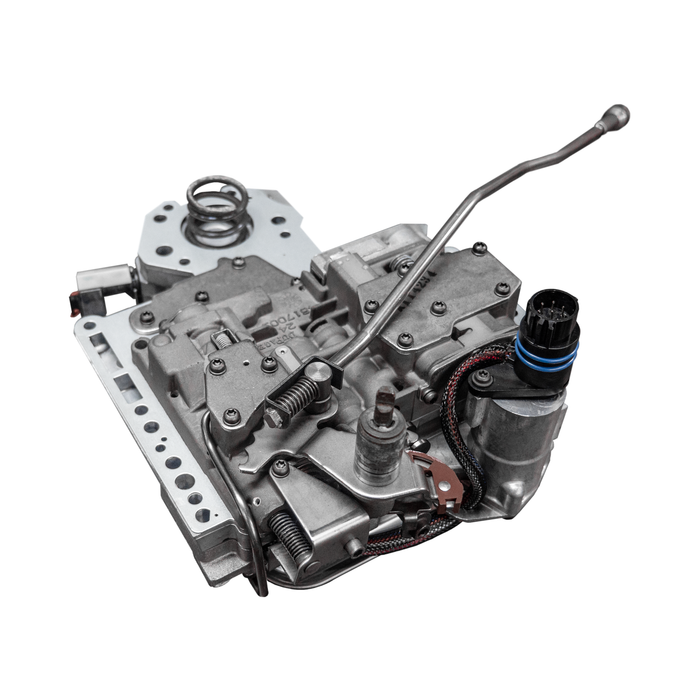

2005-2007 Dodge Ram 2500/3500 48RE Firepunk Full Manual Valve Body | 1000+HP Rated
Part#:
Description
Firepunk Full Manual Valve Body (FMVB)
This is full manual control. The transmission will not shift automatically. You control every gear, Overdrive, and TCC lockup.
Every Firepunk FMVB is completely torn down, cleaned, inspected, and rebuilt in-house at our Ohio facility. Each unit is vacuum tested to verify proper sealing and dyno tested to confirm pressure and function before it ships. If a valve body does not meet our specifications, it is corrected before leaving our shop.
The FMVB eliminates the Throttle Valve (TV) Circuit completely so your TV Cable or TV Motor is no longer needed. (Use of a static TV Lever is not needed)
Each unit includes new OD and TCC solenoids with a new wiring harness, a heavy duty 1–2 accumulator spring, and a new filter. All valve bodies are built for firm, quick shifts with improved 3–4 shift performance.
This is not a stock replacement. It is built for full driver control, higher horsepower applications, and aggressive use.
Choosing Your Valve Body
You’ll select your setup using the dropdowns. Here’s what each option means:
Build Options:
Line Pressure
Split Pressure (Recommended)
140–150 PSI in 1st–3rd
190–200 PSI in OD/TCC
Balanced for street and track use
Constant Pressure
190–200 PSI in all gears
Firmer shifts with increased holding capacity
Runs hotter and adds load to the pump
For high horsepower and race use
TCC Lockup
2–3–4 Lockup (Recommended)
Most common for street and track use
1–2–3–4 Lockup
Allows 1st gear lockup
Used in sled pulling, racing, or low gear load situations
Important Notes
- Includes correct rooster comb
- Does NOT include park rod (reuse your original)
- For custom line pressure requests, call or email sales@firepunkdiesel.com
Recommended Setup
- Built transmission with at least a billet input shaft
- Triple disc converter recommended
