Waterman Mechanical Lift Pump Kit (Excl. Cover) | 2003-2018 Dodge Ram 5.9 & 6.7 Cummins.

Waterman Mechanical Lift Pump Kit (Excl. Cover) | 2003-2018 Dodge Ram 5.9 & 6.7 Cummins

by DjPrecisionMachine

Part#:

DJPCNC100309
$1,649.99 - $1,649.99
$1,649.99
$1,649.99 - $1,649.99
$1,649.99
Description

Waterman Direct Drive Setup



No need to buy a whole new system when you can just buy the kit! Our Billet Direct Drive setup eliminates the complication of two electric lift pumps. It is capable of 300 GPH and engine dyno-proven to support over 3200 hp on one of our D&J Enforcer Long Blocks.

Key Features:

  • High Capacity: Capable of 300 GPH, supporting over 3200 hp.
  • Simplified Design: Eliminates the need for two electric lift pumps.

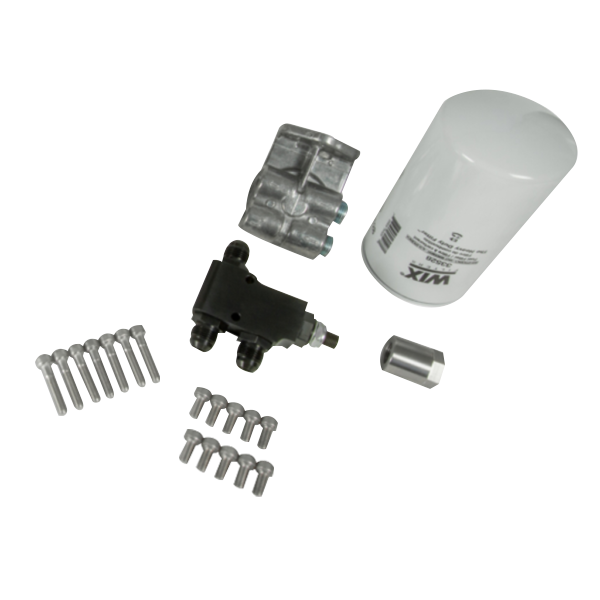

Kit Includes:

  • Stainless Steel Hardware Kit
  • 300GPH Waterman 250 Series Fuel Pump
  • Black Anodized Fittings
  • High Flow Spring Regulator
  • High Flow Filter Head with Filter

Clearance Information:

  • Fitment Note: This kit will not work with the stock radiator fan.
  • 3rd Gen with Stock Location Radiator: 3.250" clearance from Waterman to radiator.
  • 4th Gen with Stock Location Radiator: 3.500" clearance from Waterman to radiator.

Upgrade to our Billet Direct Drive setup for a high-performance, simplified fuel delivery solution.
